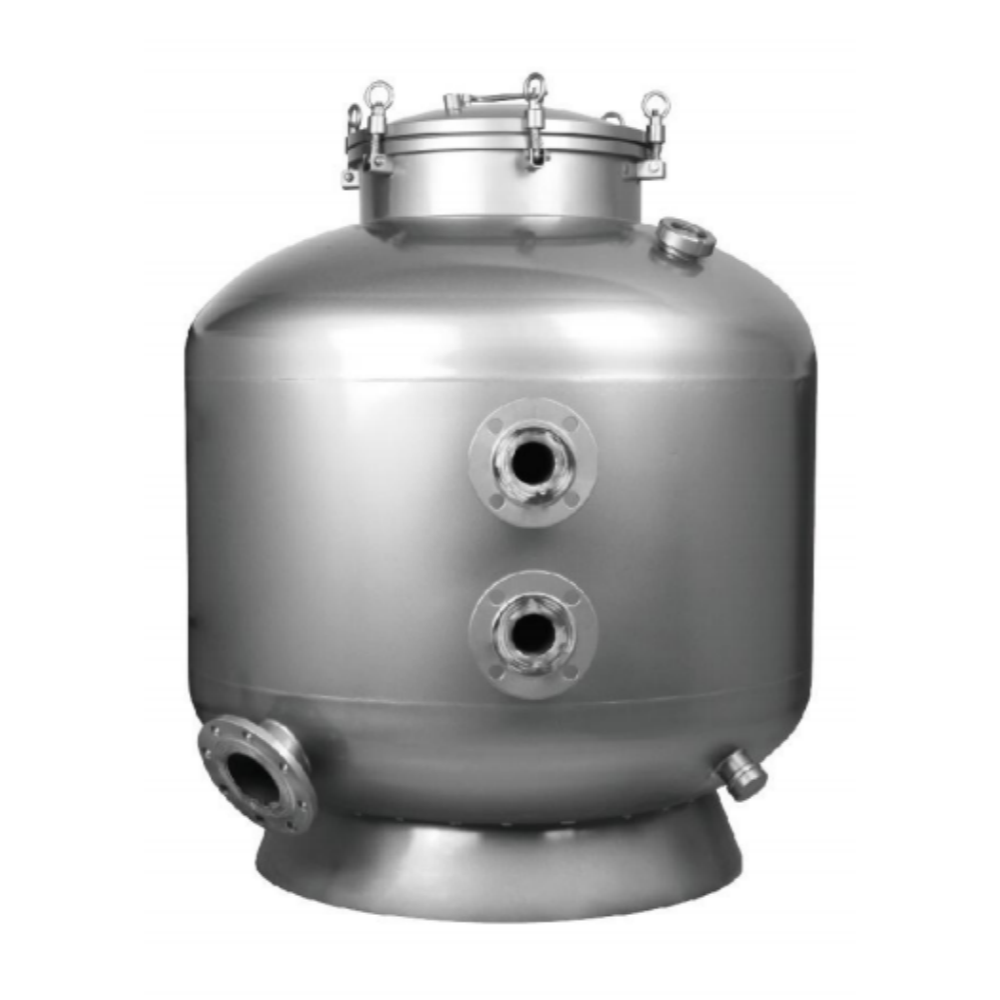

Stainless Steel Side-Mount Sand Filter
Side-Mount Stainless Steel Sand Filter - Durable & Space-Saving Filtration Solution
Product Overview
SENOTECH Side-Mount Stainless Steel Sand Filter combines the superior durability of 304/316L stainless steel with practical side-port design for space-constrained installations. Engineered for long-term reliability in corrosive environments, this filter delivers professional-grade performance while maximizing equipment room efficiency.
Key Features
Corrosion-Resistant Construction: 304 stainless steel tank withstands harsh chemicals and saltwater applications
Space-Optimized Design: Side-mounted connections enable installation against walls and in tight spaces
High-Pressure Capability: Working pressure up to 0.39 MPa (4.0 kgf/cm²) for demanding applications
Consistent Filtration Performance: Efficient lateral system ensures uniform water distribution
Low Maintenance Operation: 6-position multiport valve simplifies routine maintenance
Technical Specifications
Tank Material: 304 Stainless Steel
Max Working Pressure: 0.39 MPa (4.0 kgf/cm²)
Connection Types: Side-mounted 1.5" or 2" NPT threads
Filtration Grade: 20-30 microns
Filter Media: Silica sand (0.4-0.8mm)
Available Models: TS600 through TS1200 series
Applications
Commercial swimming pools and aquatic centers
Seawater pools and marine applications
Water parks and recreational facilities
Industrial water treatment systems
High-end residential pools with space limitations
Advantages
Long Service Life: Stainless steel construction eliminates tank degradation concerns
Installation Flexibility: Side ports allow versatile piping arrangements
Reduced Maintenance: Corrosion-proof materials minimize upkeep requirements
Professional Grade: Suitable for commercial and heavy-duty applications
Hygienic Solution: Non-porous surface prevents bacterial growth
The SENOTECH Side-Mount Stainless Steel Sand Filter represents the optimal choice where corrosion resistance and space efficiency are paramount. Its robust construction ensures reliable performance in the most demanding environments, from commercial pool decks to coastal installations.

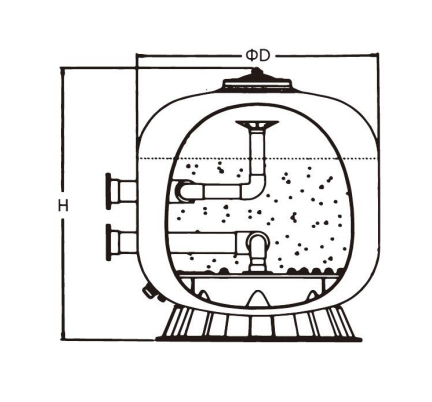

| Model | Specifications (mm) | Inlet/Outlet (inch/mm) | Filtration Area (m²) | Flow Rate (m³/h) | Sand Quantity (kg) | Pool Volume (m³) |
| TS600 | Φ600×700×2.0 | 1.5"/50 | 0.28 | 15 | 160 | 65-95 |
| TS650 | Φ650×750×2.0 | 1.5"/50 | 0.3 | 17.4 | 180 | 80-130 |
| TS700 | Φ700×800×2.0 | 1.5"/50 | 0.37 | 18.5 | 220 | 130-165 |
| TS800 | Φ800×1000×2.0 | 2.0"/63 | 0.5 | 25 | 300 | 165-200 |
| TS900 | Φ900×1100×2.0 | 2.0"/63 | 0.64 | 30 | 400 | 200-240 |
| TS1000 | Φ1000×1200×3.0 | 2.0"/63 | 0.78 | 35 | 650 | 240-285 |
| TS1200 | Φ1200×1400×3.0 | 2.0"/63 | 1.13 | 56 | 700 | 285-330 |
