Integrated Pump and Sand Filter System - Complete Filtration Solution

Product Overview

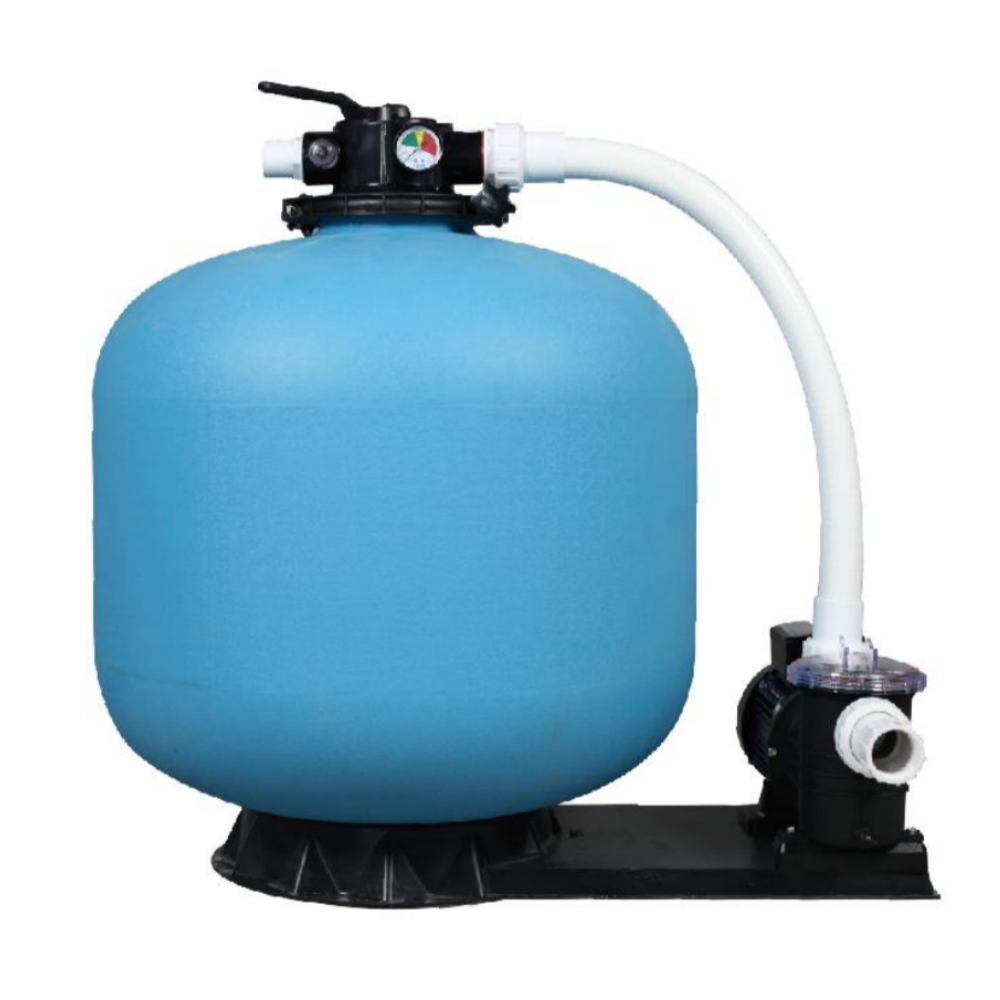

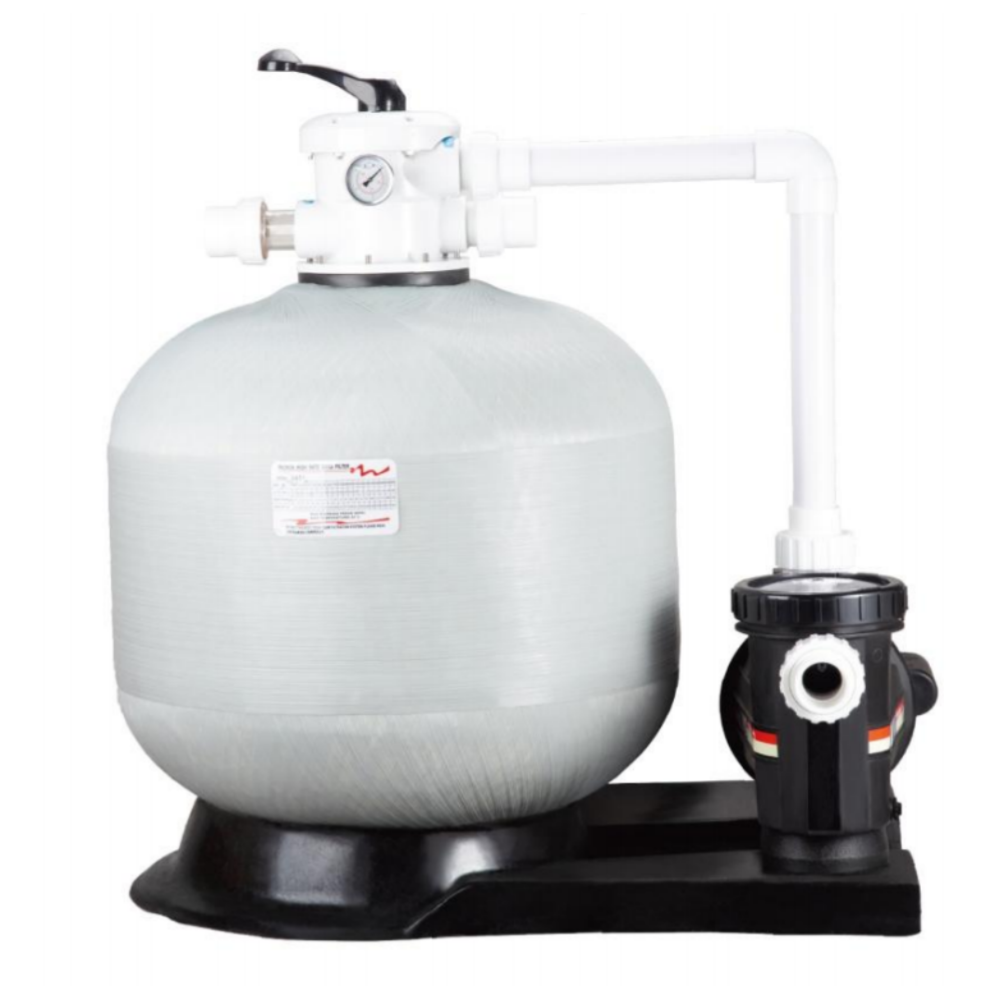

The SENOTECH Integrated Pump and Sand Filter System combines high-performance pumping and efficient sand filtration in one pre-assembled unit. This all-in-one solution eliminates compatibility concerns and reduces installation time, providing a complete water treatment package for residential and commercial swimming pools.

Key Features
• Pre-assembled and factory tested for immediate operation
• Space-saving compact design
• Energy-efficient pump matched to filter capacity
• Corrosion-resistant FRP filter tank or plastic
• User-friendly 6-position multiport valve
• Simplified installation with pre-wired components

Technical Specifications

• Flow Rate: 6-18.5 m³/h (model dependent)

• Pump Power: 0.5-2.0 HP

• Filter Tank: Fiberglass Reinforced Plastic/Plastic

• Filtration Area: 0.11-0.37 m²

• Working Pressure: 0.25 MPa

• Connection Size: 1.5"

Operation Modes

1. FILTER - Normal filtration operation

2. BACKWASH - Cleaning filter media

3. RINSE - Settling sand bed

4. WASTE - Bypassing filter

5. RECIRCULATE - Circulating without filtering

6. CLOSED - System shutdown

Benefits

• Easy Installation: Pre-assembled unit reduces setup time by 60%

• Cost Effective: Lower installation and maintenance costs

• Reliable Performance: Perfectly matched components ensure optimal operation

• Low Maintenance: Simple backwash cleaning process

• Versatile Application: Suitable for various pool types and sizes

Applications

• Residential swimming pools

• Commercial pool projects

• Water parks and recreational facilities

• Aquatic centers and public pools

SENOTECH Integrated Pump and Sand Filter Systems provide a complete, ready-to-install solution that guarantees compatibility and performance. With simplified installation and operation, plus reduced maintenance requirements, our integrated systems offer exceptional value for both new construction and replacement projects.

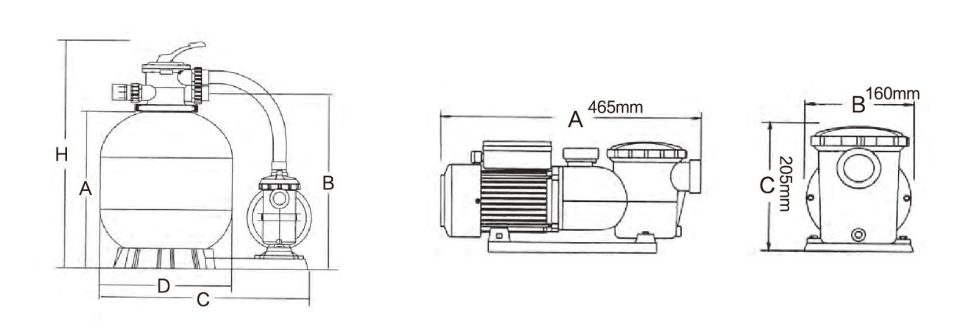

Specifications Data
