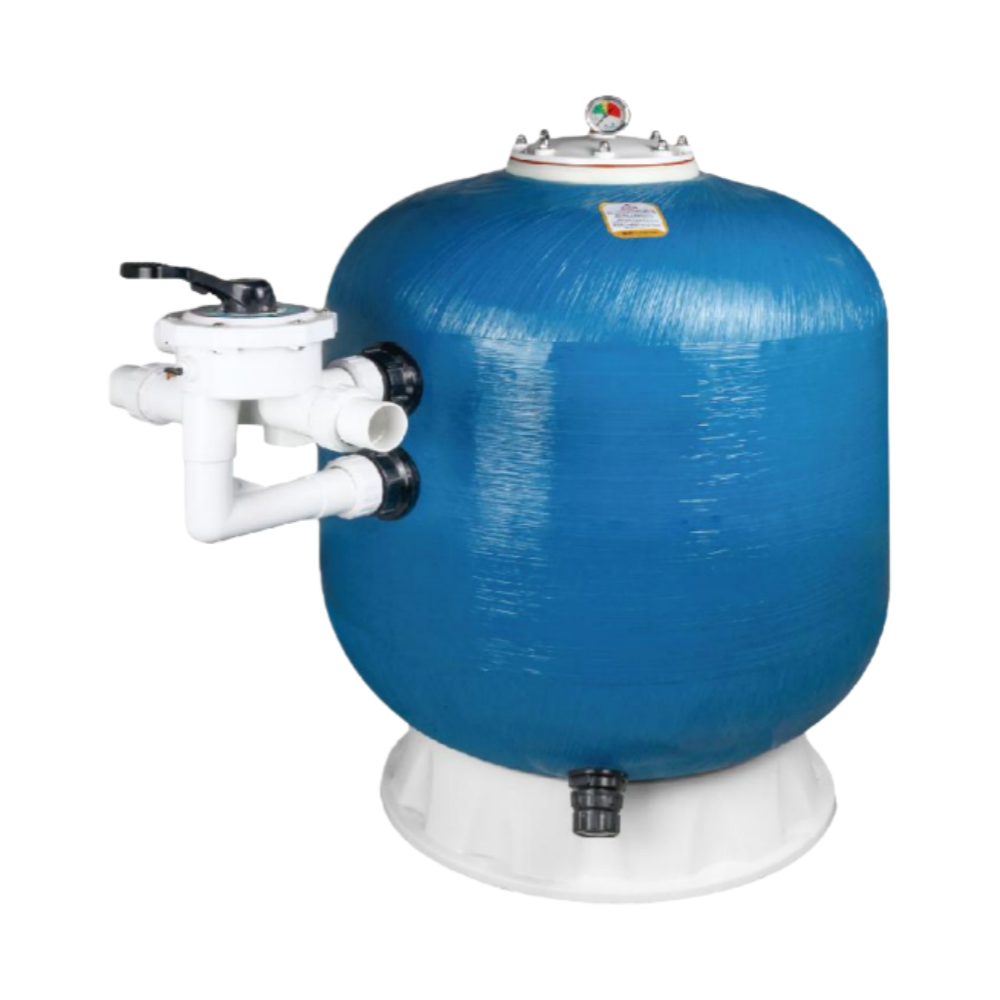

SENOTECH Side-Mount Sand Filter: The Heart of a Crystal Clear Pool

The SENOTECH Side-Mount Sand Filter is the ideal choice where space efficiency and reliable performance are paramount. Its innovative side-port configuration eliminates the need for overhead clearance, making it perfect for compact pump rooms while maintaining exceptional filtration capabilities.

Key Advantages:

• Optimized Space Utilization

• The strategic side-mounted connections allow for installation against walls or in low-ceiling areas, providing unparalleled flexibility in cramped equipment rooms.

• Consistent Filtration Quality

• Engineered with precision lateral assemblies that ensure even water distribution through the media bed, effectively capturing fine particles while maintaining optimal flow rates.

• Long-Term Investment Protection

• Constructed from heavy-duty, UV-resistant FRP material using seamless molding technology, our filter tanks withstand harsh pool environments year after year.

• User-Friendly Operation

• Clearly labeled valve positions (Filter, Backwash, Rinse, Recirculate, Closed) make routine maintenance straightforward, reducing operational complexity and training time.

Technical Specifications:

• Type: Side-Mount Sand Filter

• Tank Material: Fiberglass Reinforced Plastic (FRP)

• Max Working Pressure: 250 KPa (36 PSI)

• Filtration Grade: 20-40 microns

• Filter Media: Silica Sand (0.5-1.0mm)

• Available Sizes: T450 through T1400 models to match various flow requirements

Applications:
Ideal for residential swimming pools, compact commercial pools, water features, and various water treatment projects where space optimization is crucial.

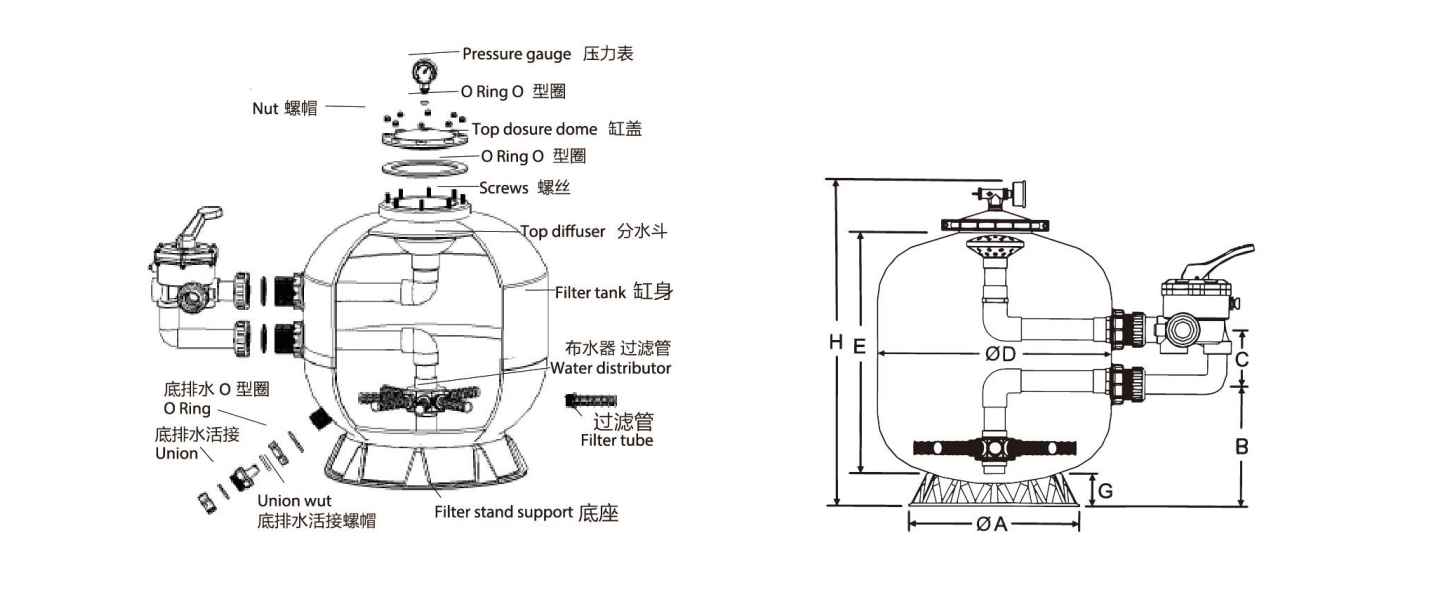

Specifications:
