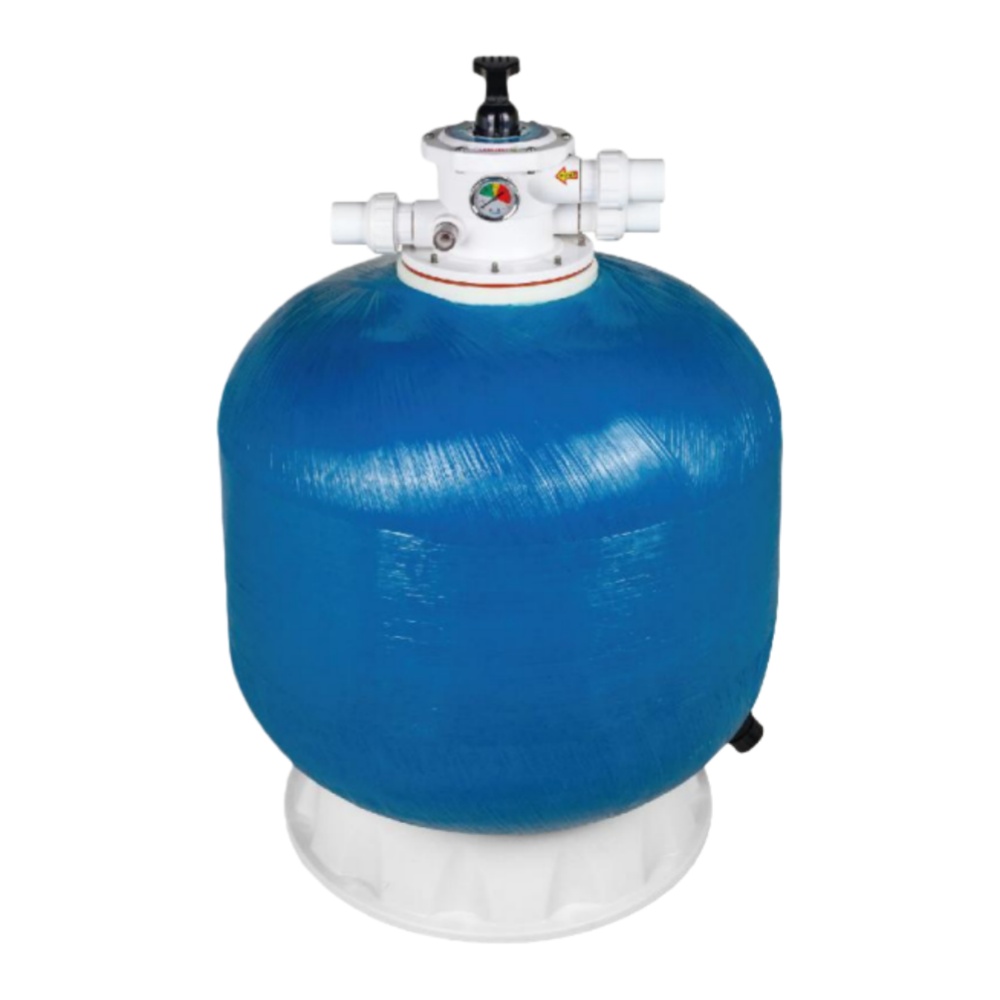

Fiberglass Top-Mount Sand Filter

SENOTECH Top-Mount Sand Filter engineered for superior performance and effortless maintenance, our top-mount sand filter ensures crystal-clear water with its high-rate, efficient design. The robust FRP construction guarantees long-term durability against corrosion and high pressure. Its user-friendly multiport valve simplifies backwashing, saving you time and operational costs.

Description Package Information Inquiry

SENOTECH Top-Mount Sand Filter: The Heart of a Crystal Clear Pool

The SENOTECH Top-Mount Sand Filter is engineered for professionals who demand reliability and efficiency. Its innovative top-mounted lateral system provides unparalleled filtration by evenly distributing water through the silica sand, trapping impurities effectively while maintaining low resistance and energy consumption.

Why Choose Our Top-Mount Sand Filter?

Unmatched Durability: Our filter tanks are manufactured with premium materials and advanced technology, ensuring long-term service life and resistance to UV rays and corrosion.

Commercial-Grade Performance: Designed to handle high flow rates, making it the perfect choice for swimming pools, water parks, and large aquatic facilities where water quality is paramount.

Simplified Operation: The intuitive multiport valve (Backwash, Rinse, Recirculate, Waste, Filter, Closed) makes routine maintenance a quick and simple task, saving you time and operational costs.

Cost-Effective Filtration: Sand is the most economical and environmentally friendly filter media. A single charge lasts for years, providing exceptional value over time.

Ideal for pool builders, maintenance companies, and distributors, the SENOTECH Top-Mount Sand Filter is your trusted solution for achieving and maintaining pristine water quality.

Specifications:

Model	Size (inch/mm)	Inlet/Outlet (inch/mm)	Filtration Area (m3)	Flow Rate (m3/h)	Sand Qty (kg)	Pool Volume (m3)
T400	16/400	1.5"/50	0.11	6	40	42-50
T450	18/450	1.5"/50	0.14	8	56	50-65
T500	21/500	1.5"/50	0.2	10	100	65-95
T650	25/650	1.5"/50	0.3	16	180	95-130
T700	28/700	1.5"/50	0.37	19	220	130-165
T750	30/750	2.0"/63	0.44	20	260	165-185
T800	32/800	2.0"/63	0.5	25	300	185-200
T900	36/900	2.0"/63	0.64	30	400	200-240
T1000	40/1000	2.0"/63	0.79	35	650	240-265
T1100	44/1100	2.0"/63	0.98	44	680	265-300
T1200	48/1200	2.0"/63	1.13	50	700	300-360
T1400	56/1400	2.0"/63	1.53	68	1200	360-425

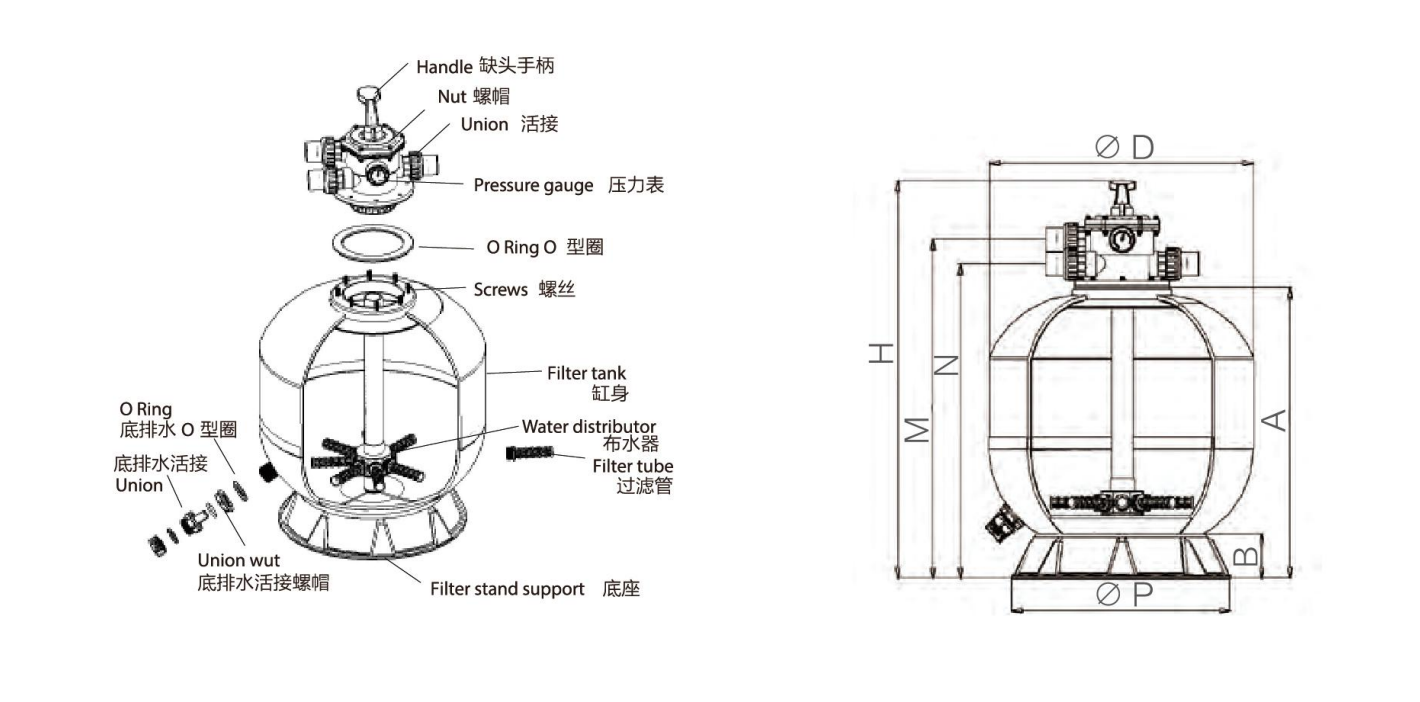

Model	D (mm)	H (mm)	A (mm)	B (mm)	P (mm)	N (mm)	M (mm)
T400	400	720	495	100	425	525	605
T450	450	770	520	100	425	575	630
T500	500	850	605	100	425	655	715
T650	650	915	670	100	560	715	785
T700	700	1030	780	100	560	835	890
T750	750	1130	840	100	560	895	985
T800	800	1150	860	145	710	920	1000
T900	900	1290	995	145	710	1050	1140
T1000	1000	1310	1040	145	870	1080	1160
T1100	1100	1470	1180	145	870	1235	1315
T1200	1200	1530	1240	145	870	1295	1375
T1400	1400	1780	1490	170	1180	1550	1630
