SENO-P150/P180/P200 | 15.0-20.0HP | Heavy-Duty Project Pumps

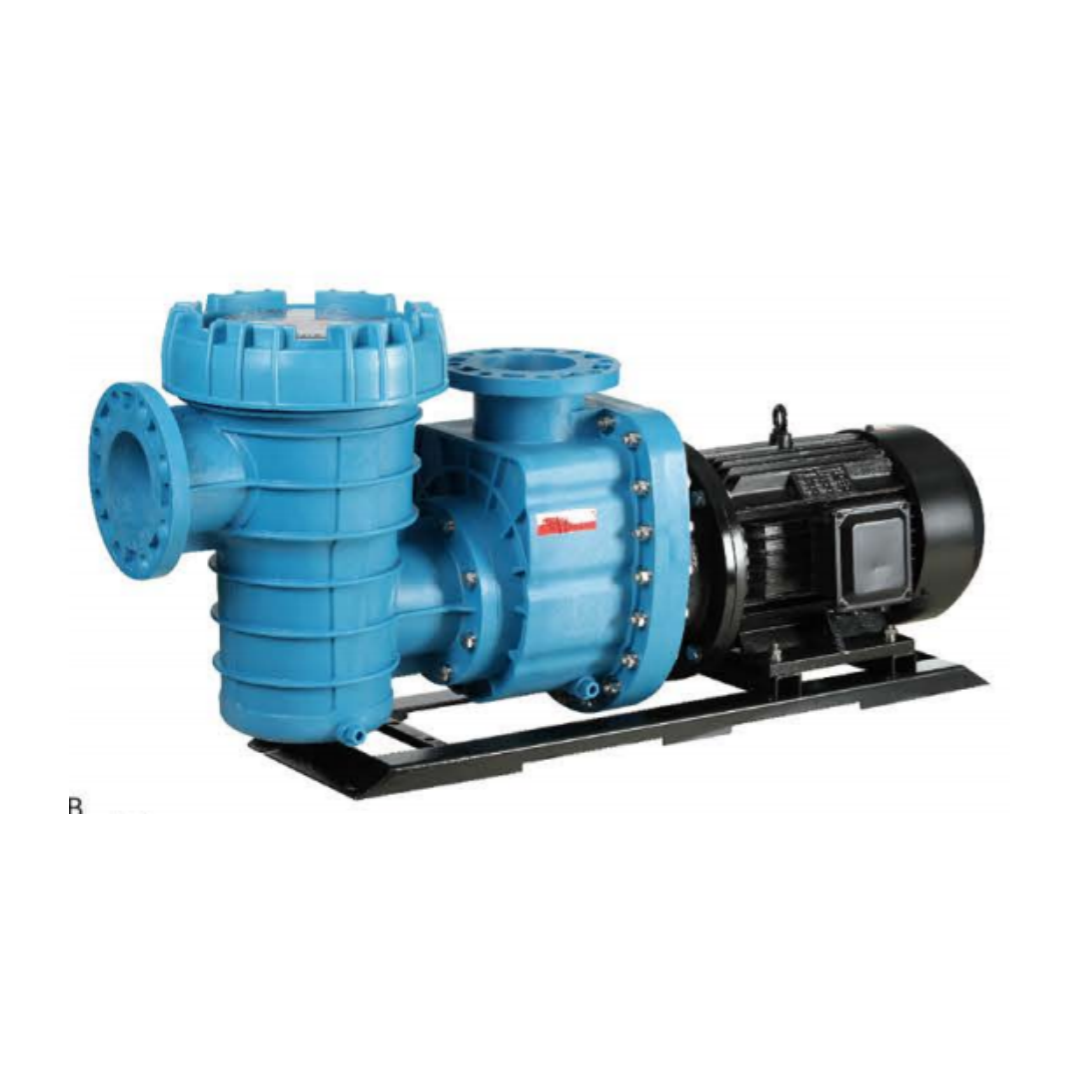

SENO-P150/P180/P200 Pump Series - Heavy-Duty Industrial Performance
Product Overview
The SENO-P150 to P200 series represents the pinnacle of our commercial pump line, built for the most demanding applications. With a massive 15.0 to 20.0 horsepower and unmatched flow rates, these pumps are the definitive solution for large-scale aquatic centers, water parks, and major commercial projects where zero compromise on performance is required.
Key Features
Industrial-Grade Power: Top-tier horsepower and torque for massive water bodies and complex circulation systems.
Engineered for Major Projects: The ultimate choice for high-flow requirements in theme parks and public aquatic facilities.
Maximum Flow Capacity: Moves immense volumes of water efficiently, supporting large-scale filtration and feature systems.
Full 4-Inch Porting: Standard 4-inch connections to handle the highest flow rates with minimal pressure drop.

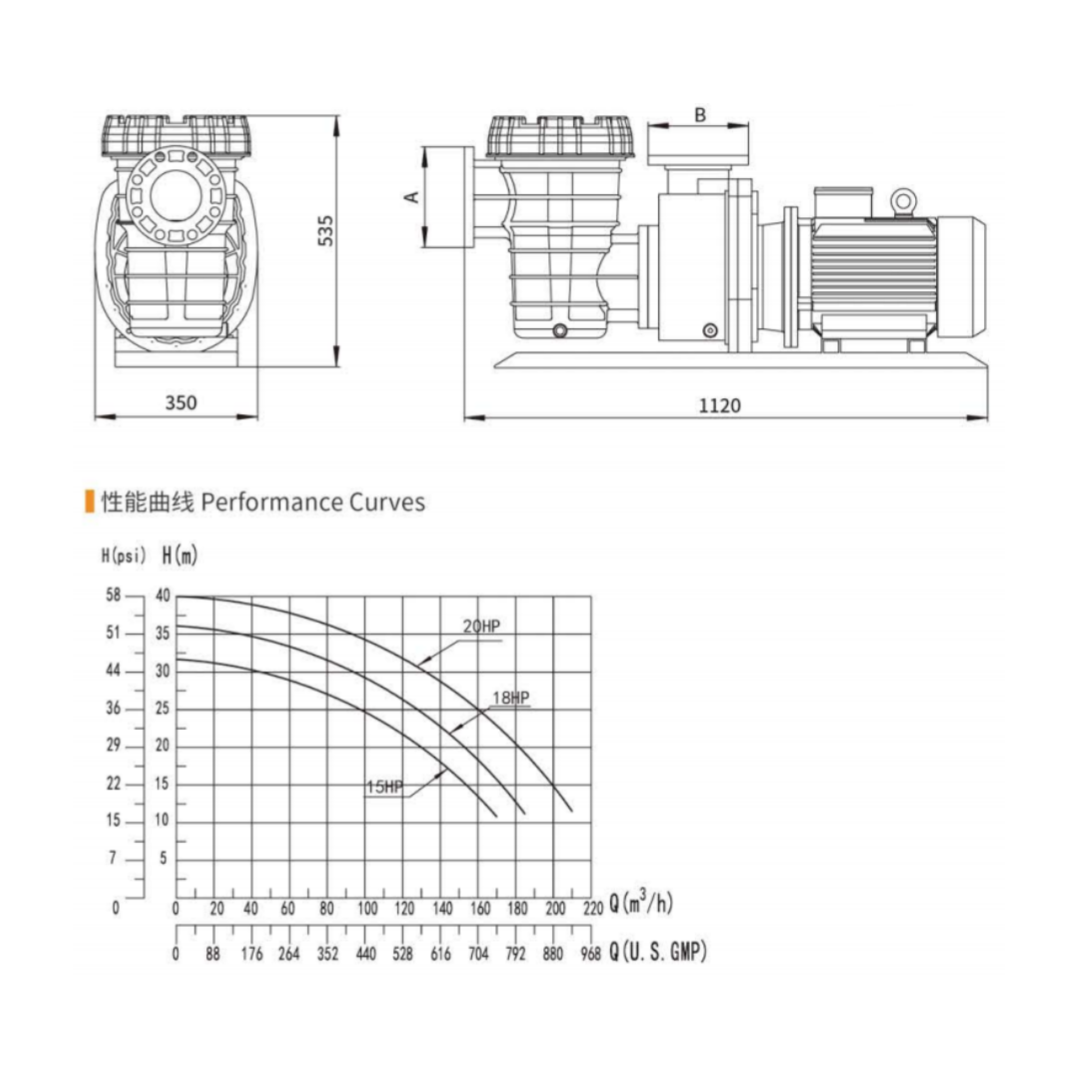

Technical Specifications
| Model | Voltage | Power (kW) | Power (HP) | Rotating Speed (r/min) | Maximum Lift (m) | Maximum Flow (m³/h) | Insulation Class | Protection Grade | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SENO-P150 | 380V/50Hz | 11.0 | 15.0 | 2850 | 32 | 170 | F | IP X5 | 112 |
| SENO-P180 | 380V/50Hz | 13.0 | 18.0 | 2850 | 38 | 185 | F | IP X5 | 123 |
| SENO-P200 | 380V/50Hz | 15.0 | 20.0 | 2850 | 40 | 210 | F | IP X5 | 160 |
Packaging: 1220mm × 450mm × 620mm
Ideal For
Water Parks & Aquatic Adventure Centers
Olympic-Size Competition Pools
Major Municipal & Public Recreation Centers
Large Wave Pools and Signature Water Features
For the most demanding aquatic projects, trust SENOTECH's ultimate power solution. Contact our commercial team for a custom quote and project support.
