SENO-320WM / 330WM / 340WM | 2.0-4.0HP | Standard & Large Pool Pumps

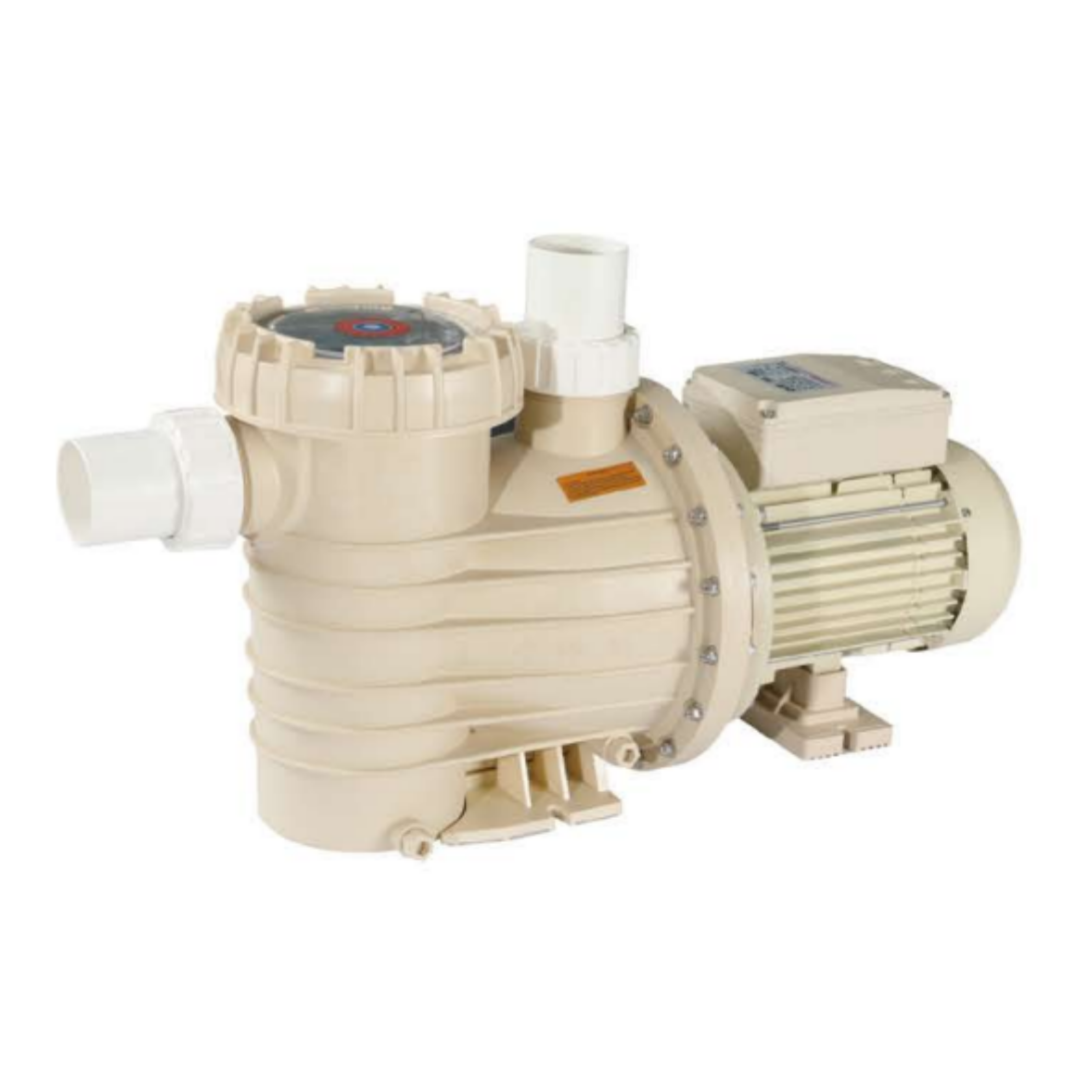

SENO-320WM & 330WM Series Pool Pumps - Certified Performance
Product Overview
The SENO-320WM & 330WM & 340WM series represent our certified line of high-performance pool pumps, designed to meet the demands of both residential and commercial applications. These pumps combine reliable operation with complete safety certifications.

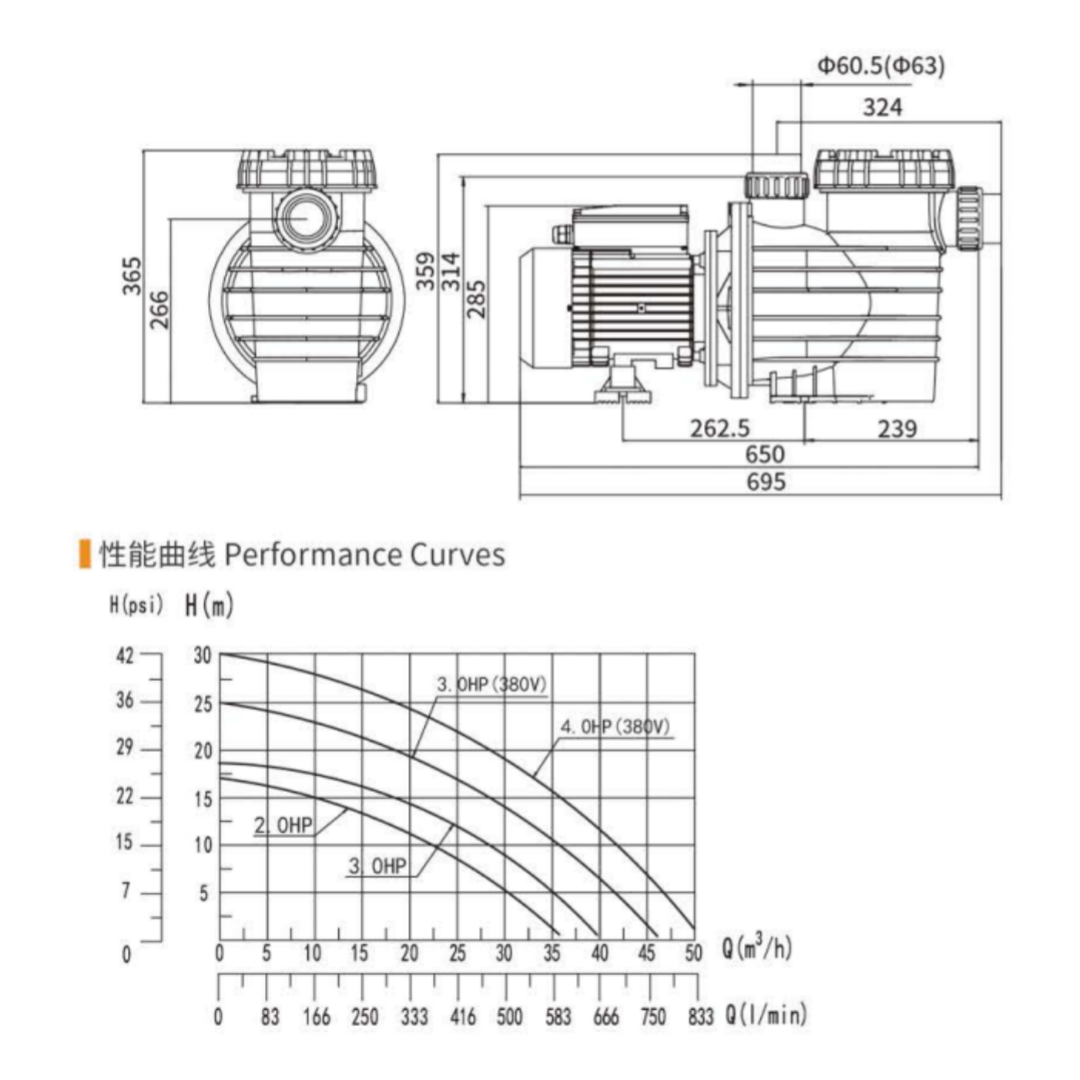

Technical Specifications
| Model | Voltage | Power (HP) | Power (Kw) | Rotating Speed (r/min) | Maximum Lift (m) | Maximum Flow (m³/h) | Insulation Class | Protection Grade | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SENO-320WM | 230V/50Hz | 2.0 | 1.5 | 2850 | 17.0 | 36 | F | IP X5 | 17.0 |
| SENO-320WM | 230V/60Hz | 2.0 | 1.5 | 3450 | 17.0 | 36 | F | IP X5 | 17.0 |
| SENO-320WM | 115V/60Hz | 2.0 | 1.5 | 3450 | 17.0 | 36 | F | IP X5 | 17.0 |
| SENO-330WM | 230V/50Hz | 3.0 | 2.1 | 2850 | 18.0 | 39 | F | IP X5 | 18.0 |
| SENO-330WM | 230V/60Hz | 3.0 | 2.1 | 3450 | 18.0 | 39 | F | IP X5 | 18.0 |
| SENO-330WM | 115V/60Hz | 3.0 | 2.1 | 3450 | 18.0 | 39 | F | IP X5 | 18.0 |
| SENO-320WM-3P | 380V/50Hz | 2.0 | 1.5 | 2850 | 17.0 | 36 | F | IP X5 | 17.0 |
| SENO-330WM-3P | 380V/50Hz | 3.0 | 2.1 | 2850 | 25.0 | 46 | F | IP X5 | 18.0 |
| SENO-340WM-3P | 380V/50Hz | 4.0 | 2.8 | 2850 | 30.0 | 50 | F | IP X5 | 19.0 |
Packaging: 755mm × 315mm × 485mm
Optional: Timer & Dry-Run Protection Available
Key Features
• Complete Safety Certifications (CE)
• Class F Insulation System
• IPX5 Weather Protection
• Global Voltage Compatibility
• Three-Phase Options Available
Applications
• Residential In-Ground Pools
• Commercial Pool Systems
• Water Circulation Applications
• Large-Scale Filtration Systems
