Low-Pressure UV Sterilizers for Pools
Low-Pressure UV Sterilizers for Pools
Achieve Pristine, Inviting Pool Water with Advanced UV Disinfection

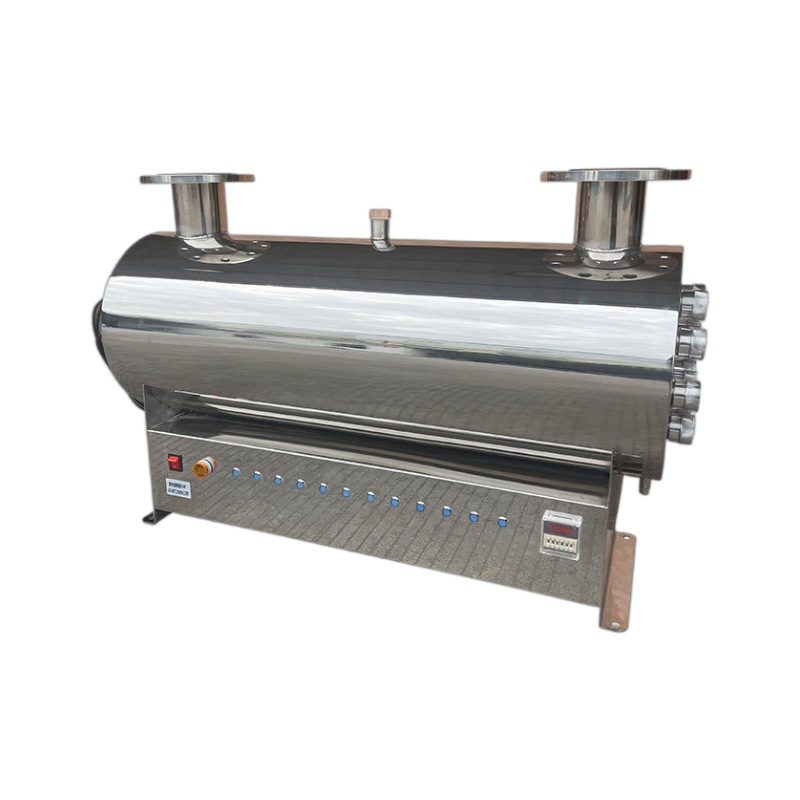

The SN Series Low-Pressure UV Sterilizers are engineered to redefine pool water quality. By leveraging proven ultraviolet technology, our systems effectively eliminate waterborne pathogens and, crucially, destroy chloramines—the compounds responsible for unpleasant "chlorine" odor, eye irritation, and skin discomfort. Provide swimmers with a safer, clearer, and more enjoyable experience while simplifying your pool's water management.
Technical Specifications
| Code | Model | Handle water capacity(T/H) | Lamp equipment (Power X gty) | LxWxH(mm) | Inlet/outlet size | ||
| Clean water | River water/ underground water etc | Purified water/ running water etc | |||||
| 2005004030 | SN-80W/220V | 4 | 2 | 3-4 | 40W*2 | 960*160*370 | DN50 |
| 2005005030 | SN-120W/220V | 6 | 3 | 4-5 | 40W*3 | 960*160*370 | DN50 |
| 2005001030 | SN-160W/220V | 8 | 4 | 5-7 | 80W*2 | 960*160*370 | DN50 |
| 2005006030 | SN-200W/220V | 10 | 5 | 7-8 | 40W*5 | 960*180*415 | DN50 |
| 2005002030 | SN-240W/220V | 12 | 6 | 8-10 | 80W*3 | 960*160*370 | DN50 |
| 2005003030 | SN-320W/220V | 16 | 8 | 11-13 | 80W*4 | 960*160*370 | DN50 |
| 2005007030 | SN-400W/220V | 20 | 10 | 12-17 | 80W*5 | 960*180*415 | DN65 |
| 2005008030 | SN-480W/220V | 24 | 12 | 16-20 | 80W*6 | 960*180*415 | DN65 |
| 2005009030 | SN-560W/220V | 28 | 14 | 18-24 | 80W*7 | 960*180*415 | DN65 |
| 2005010030 | SN-640W/220V | 32 | 16 | 22-26 | 80W*8 | 960*180*415 | DN65 |
| 2005011030 | SN-720W/220V | 36 | 18 | 25-29 | 80W*9 | 960*195*415 | DN80 |
| 2005012030 | SN-960W/220V | 48 | 24 | 33-39 | 320W*3 | 1550*230*500 | DN80 |
| 2005013030 | SN-1280W/220V | 64 | 32 | 45-51 | 320W*4 | 1550*230*500 | DN80 |
| 2005014030 | SN-1600W/220V | 80 | 40 | 56-64 | 320W*5 | 1550*230*500 | DN80 |
| 2005015030 | SN-1920W/220V | 96 | 48 | 67-77 | 320W*6 | 1550*230*500 | DN80 |
| 2005016030 | SN-2240W/220V | 112 | 56 | 78-90 | 320W*7 | 1550*230*500 | DN80 |
| 2005017030 | SN-2560W/220V | 128 | 64 | 90-102 | 320W*8 | 1550*230*500 | DN80 |
| 2005018030 | SN-3840W/220V | 192 | 96 | 135-155 | 320W*12 | 1550*270*615 | DN125 |
Core Advantages for Superior Pool Water
Targeted Chloramine Destruction: Our systems specifically break down combined chlorine molecules, effectively eliminating the causes of red eyes, respiratory irritation, and the strong chemical smell in and around the pool.
Comprehensive Microorganism Control: UV energy instantly inactivates over 99.9% of bacteria, viruses, and algae, acting as a powerful secondary sanitizer that enhances your primary chemical system.
Optimized Chemical Balance: Reduce reliance on high chlorine doses. Maintain effective sanitation with lower chemical levels, leading to cost savings and a more comfortable swimming environment.
Robust & Reliable Design: Constructed with high-grade stainless steel for excellent corrosion resistance in humid pool plant rooms, ensuring long-term, maintenance-efficient operation.
Ready to Transform Your Pool Water Quality?
Contact us today for a professional recommendation on the perfect SN Series model for your specific pool volume and flow rate requirements.
