LC Series Compact Salt Chlorinator (2.5-10g)
LC Series Compact Salt Chlorinator – All-in-One Smart Sanitation Solution

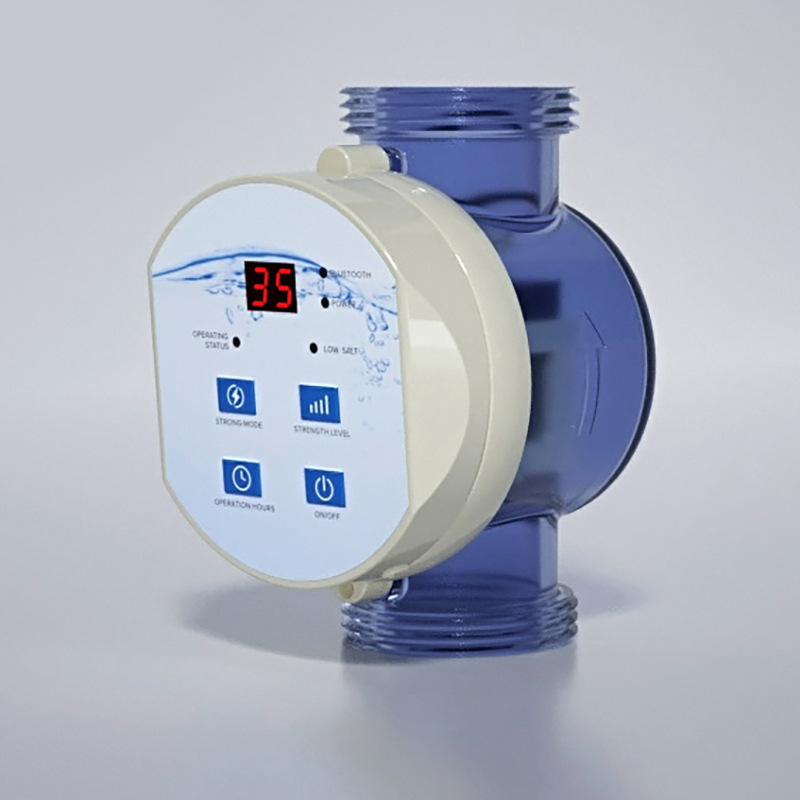

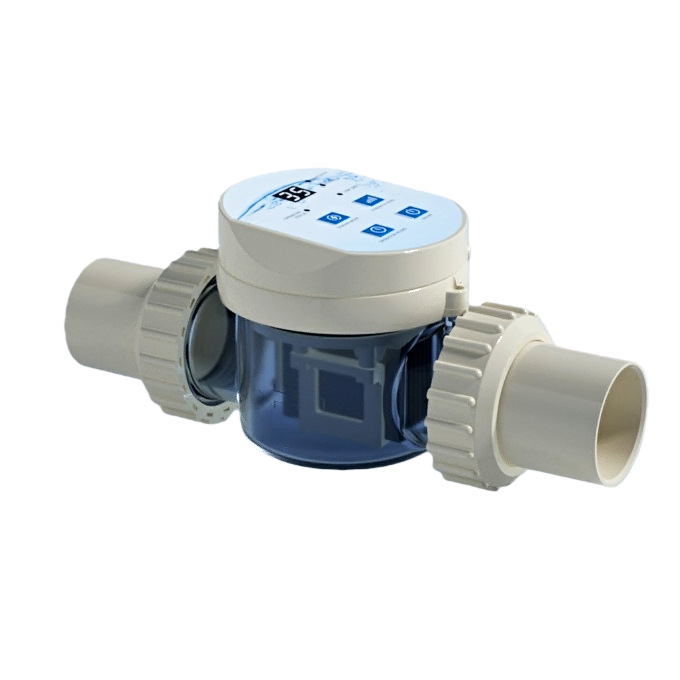

Meet the LC Series Compact Salt Chlorinator, an innovative all-in-one system that combines the controller and chlorine generator in a single, space-saving unit. Designed for pools up to 45 cubic meters, this chlorinator delivers efficient, odorless disinfection by electrolyzing salt added to your pool water. Enjoy gentle, crystal-clear water without the need for harsh chemicals.
Key Features & Benefits:
All-in-One Design & Easy Installation: The integrated controller and chlorine generator simplify installation and save valuable space. Its compact design and plug-and-play setup make it ideal for various pool types.
Complete Waterproof Safety: Built with an overall waterproof design (IPX5 rating), this unit ensures safe and reliable operation in all poolside environments, providing peace of mind for homeowners.
Advanced Titanium Electrode System: Features titanium electrodes coated with precious ruthenium oxide, delivering outstanding durability with a lifespan of over 10,000 hours. The removable titanium plates enable easy cleaning and maintenance.
Smart Control & Monitoring: Manage your pool sanitation remotely via a dedicated mobile app (available on A-series models). Monitor system status and adjust settings conveniently from your smartphone.
Intelligent Self-Cleaning & Protection: The system automatically reverses electrode polarity during power-on to clean the titanium plates. Comprehensive alarms monitor low salt levels, water temperature (10°C-45°C range), water flow, voltage, and current, ensuring optimal performance and extended lifespan.
Flexible Operation Modes: Choose from two chlorine production settings to match your pool's needs. The programmable timer function allows you to set operation schedules for maximum energy efficiency, while the memory function retains your last settings after power cycles.
Technical Specifications:
| Model | LC25 | LC50 | LC75 | LC100 | LC25A | LC50A | LC75A | LC100A |
|---|---|---|---|---|---|---|---|---|
| Production (g/h) | 2.5g | 5g | 7.5g | 10g | 2.5g | 5g | 7.5g | 10g |
| Pool Volume (m³) | <10 | 10-20 | 15-35 | 25-45 | <10 | 10-20 | 15-35 | 25-45 |
| Working Voltage | DC12V | DC24V | DC12V | DC24V | DC24V | DC24V | DC24V | DC24V |
| Adapter | Outer diameter 50mm / Inner diameter 32/38mm | |||||||
| Power Input | AC100-240V, 50/60Hz | |||||||
| Optional | / | APP | ||||||
| Protection | IPX5 | |||||||
| Alarms | Low salt / Water flow detector foil / Over voltage / Over current / short circuit / overheating | |||||||
| Dimensions | 177x118x126mm | |||||||
| Warranty | One year warranty | |||||||
Summary:
The LC Series Compact Salt Chlorinator redefines pool maintenance by combining advanced sanitation technology with user-friendly features in a single, integrated unit. With its smart app control, self-cleaning capability, and comprehensive protection systems, it delivers professional-grade water care with minimal effort – making it the perfect choice for modern pool owners seeking convenience and reliability.
